SMD Meter with Diode Test 1.5V - Resistance Measuring Tool for Electricians & DIY Electronics

Product Description

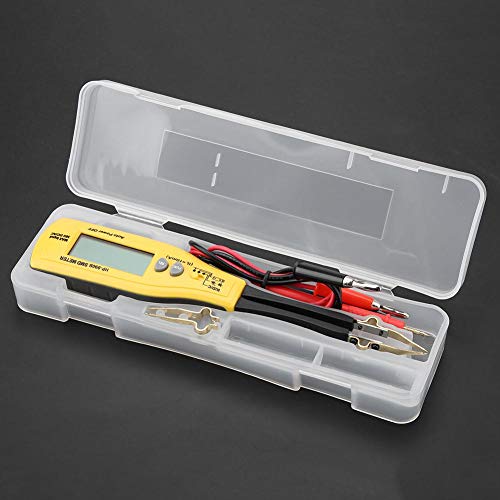

Features: 1. This meter is specially used to measure SMD(surface mounted device) 2. Handheld design, easy to grip and use. 3. Large LCD make you read easily. 4. It will be off automatically after 15minutes when there is no operation. 5. Suitable for agricultural, home appliance, industrial and office use. Spec: Condition: 100% Brand New Model: HP-990B Material:ABS+Metal Color:Yellow Power supply: 2 * 1.5V AAA batteries (Not Included) Display: 4000 counts Testing Current: 2mA Diode Test: 1.5V Resistance: 400Ω/6KΩ/40K/400KΩ ±2.0%rdg; 4MΩ/40MΩ ±2.5%rdg Capacitance: 4nF/40nF/400nF/4μF ±2.5%rdg; 200μF ±3.0%rdg Continuity Check: When the resistance is less than approx.30Ω, the buzzer sounds. Zener/LED test: Open Voltage more than DC 20V Weight: Approx. 182g / 6.4oz Size: Approx. 200 * 35 * 23mm / 7.9 * 1.4 * 0.9in Package List: 1 * SMD Meter 2 * Replaceable Pins 1 Pair of Probe Test Leads 1 * Box Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
